Features:
- Sleek Aerodynamic design
- OEM windscreen mounts required (see image below)
- Both Inner and Outer Pieces Included
- Accommodates:Heavy - Duty Construction
- 2 - 6" x 9" Round Speakers
- 4 - 5" Round Speakers
- Protective Gelcoat
- similar to compounds used on marine craft and aircraft
- battles ultraviolet degradation
- NOT a primer like the competitor uses
- Paintable
- FREE Windshields Included – 1 clear and 1 tinted
- True Hand Laid Fiberglass (not chopper gun) – lighter and STRONGER than plastic
Note: There are three fairing style options

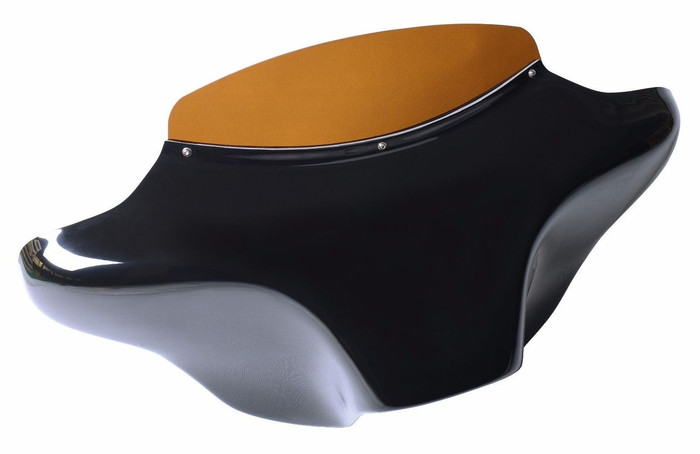

(1) Base Price - Smooth Front Fairing
(2) Base Price + $30.00 - Simulated Vent Fairing - Accepts digital media receiver and not a traditional single DIN head unit
(3) Base Price + $40.00 - Simulated Vent Open Glove Box Fairing - No Cutouts
*Items stored in diversion safe are not covered by warranty nor insured against theft. Owner assumes full responsibility, use at your discretion. Vector Batwing Fairings assumes no responsibility for stolen or missing items
NOTE: The Vector Batwing Fairing Does Not have a functioning vent. The words “simulated vent” and “vented-look” refer to the cosmetic design of this fairing, which makes it appear to have a vent. We do not offer a truly vented fairing.
Fits 1998 to 2004 Suzuki Intruder VL 1500 LC
Note:
Suzuki OEM Hardware Required - Part # 99950-72010-002 and 99950-72010-003
You may also use part numbers 990A0-70005-025 and 990A0-70005-026, as these supersede the original part numbers.
OEM Harley Davidson windscreens, 96-2013 Street Glide and Electra Glide models, fit this batwing fairing.
2 - 6"x9" Speaker Model: :
8 1/2’’ L x 5 3/4’’ H 3 1/8’’ Deep
4 - 5 14" Speaker Model: :
4 1/2" Diameter 2 1/4’’ Deep
Overall Dimensions (without windshield)::
39 1/2” L x 11 1/2” W x 17” H
Weight (without windshield): :
8 lbs. 3.9 oz.
Windshield Height: :
5 1/2’’H
Windshield Colors: :
One each Clear AND Tinted
Material: :
Hand Laid Fiberglass
Finish: :
Gelcoat
Color: :
Black
2 - 6"x9" Speaker Model::
8 1/2’’ L x 5 3/4’’ H 3 1/8’’ Deep
4 - 5 14" Speaker Model::
4 1/2" Diameter 2 1/4’’ Deep
Overall Dimensions (without windshield) ::
39 1/2” L x 11 1/2” W x 17” H
Weight (without windshield)::
8 lbs. 3.9 oz.
Windshield Height::
5 1/2’’H
Windshield Colors::
One each Clear AND Tinted
Material::
Hand Laid Fiberglass
Finish::
Gelcoat
Color::
Black
