See Fitment tab for exact fitment details
Build Time Varies By Season, Please Reach Out To Us For Our Current Build Time
FEATURING

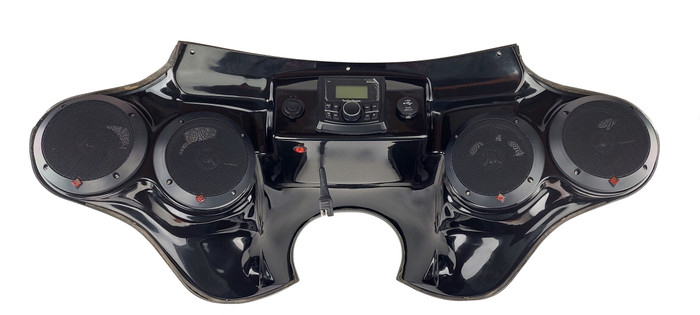

The 6 ½" Punch speaker burst with a full range of sound. Utilizing the Vertical Attach Surround Technique (VAST), Rockford Fosgate sets a polyetherimide (PEI) dome tweeter above a mineral-filled polypropylene subwoofer cone. In this 2-way design, the subwoofer is 25% larger than those in comparable speakers. The crisp highs and solid lows that this combination generates deliver a serious punch to the gut—even without an amplifier.
No matter how great these speakers are, they make no sound without something providing input. And that’s what the Rockford Fosgate PMX-1 does. Featuring built-in Bluetooth technology, a multi-use USB port, and AM/FM radio frequencies, this receiver with a water-resistant face plate packs a lot of features into a compact design.
Each fairing comes with one clear and one tinted windshield at no additional cost.
OEM Harley Davidson windscreens, 96-2013 Street Glide and Electra Glide models, fit this batwing fairing.
*All options are not available with every fairing.
NOTE: The Vector Batwing Fairing Does Not have a functioning vent. The words “simulated vent” and “vented-look” refer to the cosmetic design of this fairing, which makes it appear to have a vent. We do not offer a truly vented fairing.
*Budget Option Contains*
Rockford speakers and mulitmedia head unit
Designed to fit Suzuki M109R and M109R BOSS Motorcycles.
There are many different models, factory upgrades, and custom aftermarket parts so some modification may be necessary.

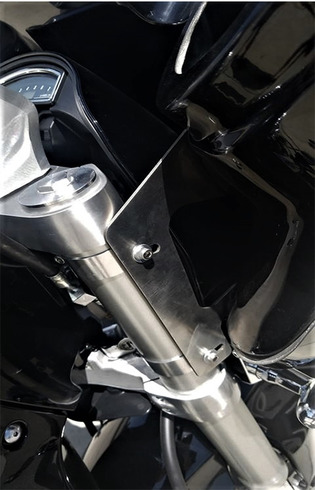

Note: If you already have Memphis Shades for 48-55mm Clamps MEM 9954, then our fairing will mount to these. If you do not have the Memphis Shades clamps, then we offer fork clamps. Installation requires 4 pieces (2 sets) of the 48-55mm fork clamps.
OEM Harley Davidson windscreens, 96-2013 Street Glide and Electra Glide models, fit this batwing fairing.
NOTE: The Vector Batwing Fairing Does Not have a functioning vent. The words “simulated vent” and “vented-look” refer to the cosmetic design of this fairing, which makes it appear to have a vent. We do not offer a truly vented fairing.
Speaker Opening Dimensions:
4 - 5 1/4" Speaker Model:
4 5/8" Diameter; 2 1/4’’ Deep
Overall Dimensions (without windshield):
39 1/2’’ L x 111/2’’ W x 17” H
Windshield Height:
5 1/2’’ H
Rockford Fosgate PMX-2 :
Full-color 2.7” TFT display:
AM/FM, Pandora Radio, Bluetooth, USB port (flash drives, etc.), and 3.5mm audio adapter:
25 watts x 4 channels @ 4Ω peak, 50 watts x 4 channels @ 2Ω peak:
Android and iPod/iPhone compatible:
7-band graphic equalizer:
MB Quart GMR-LED:
3.5” Full-color LCD screen:
AM/FM, Bluetooth, USB port (flash drives), and 3.5mm audio adapter:
20 watts x 4 channels RMS, 40 watts x 4 channels peak:
8-band graphic equalizer:
Works with Apple® and Android®smartphones:
Rockford Fosgate PMX-1:
AM/FM, Bluetooth, USB port (flash drives), and 3.5mm audio adapter :
25 watts x 4 channels @ 4Ω peak, 50 watts x 4 channels @ 2Ω peak :
7-band parametric equalizer:
MP3 ID3 Tag Display:
Title/Artist/Album
KICKER PS 5.25" 4Ω Coaxial :
Woofer :
5.25"
Max rec amp power (watts PEAK/RMS):
100/50
Sensitivity (dB 1w/1m):
88.3
Rockford Fosgate®P1524 4Ω Coaxial (4) :
Subwoofer :
5.25"
Max rec amp power (watts PEAK/RMS) :
80/40
Sensitivity (dB 1w/1m) :
87dB
