Batwing Fairing

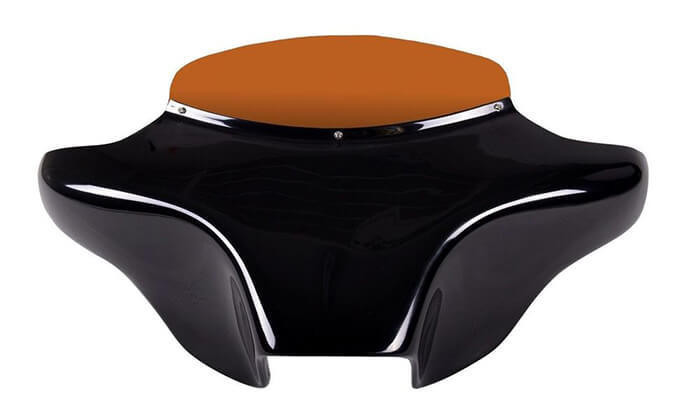

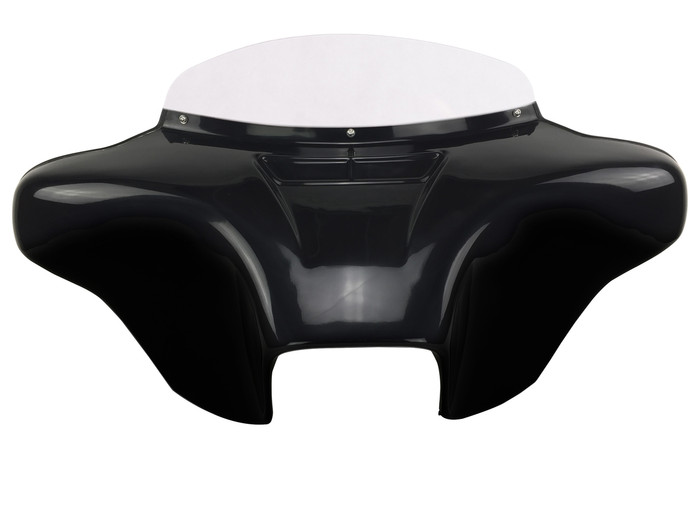

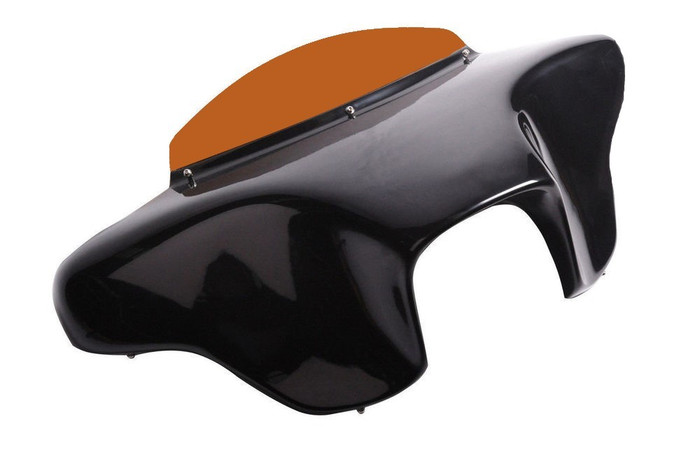

'18 to Present Harley Softail & Heritage Batwing Fairing with Speakers and Stereo System 174-0000

7 reviews Write a Review
See Fitment tab for exact fitment details Build Time Varies By Season, Please Reach Out To Us For Our Current Build Time   Build Your Own Vector Power S…
SKU: 174-0000
UPC: 901166777822
Shipping: $79.00 (Fixed Shipping Cost)
$790.00

See Fitment tab for exact fitment details

Build Time Varies By Season, Please Reach Out To Us For Our Current Build Time



Build Your Own Vector Power Sound Package

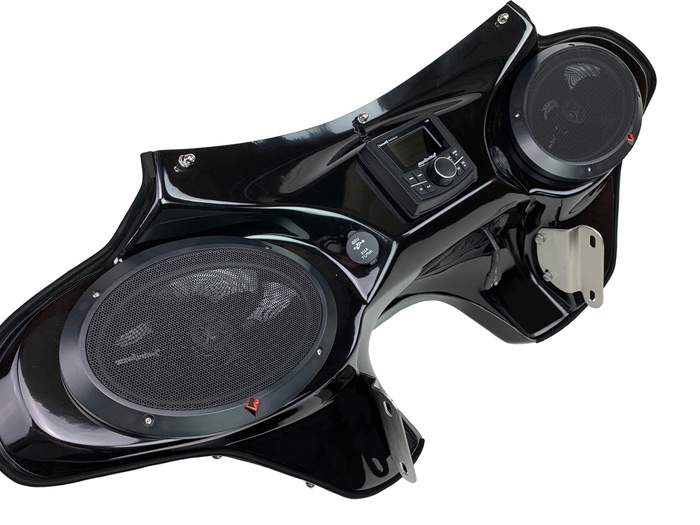

Create your perfect bundle: Select the fairing that fits your bike; pick the stereo and speakers that fit you.

Choose a simulated vent or smooth Vector Batwing Fairing and opt for two oval 6" x 9",two round 6 ½", or four round 5 ¼" speakers. Then decide on the head unit to power your sound package and bring it to life!*

For some riders, having quick and easy access to storage is a necessity. Vector GBE™ meets that requirement. With an open glove box and chrome-plated retention guard as the focus of this fairing package, Vector Glove Box Edition™ is completed with a set of booming speakers and a hair-raising amplifier.

FEATURING

Kicker generates amazing sound by combining the tweeter and woofer into one booming coaxial speaker. This two-in-one design creates an audio component loud enough to be heard above highway noise but light weight enough to maintain smooth motorcycle handling. What’s more, these 4Ω speakers are water-resistant and available in 6 ½", 4 x 5 ¼" and 6" x 9" sizes.

The 5 ¼" and 6" x 9" Punch speakers burst with a full range of sound. Utilizing their Vertical Attach Surround Technique (VAST), Rockford Fosgate sets a polyetherimide (PEI) dome tweeter above a mineral-filled polypropylene subwoofer cone. In this 2-way design, the subwoofer is 25% larger than those in comparable speakers. The crisp highs and solid lows that this combination generates deliver a serious punch to the gut—even without an amplifier.

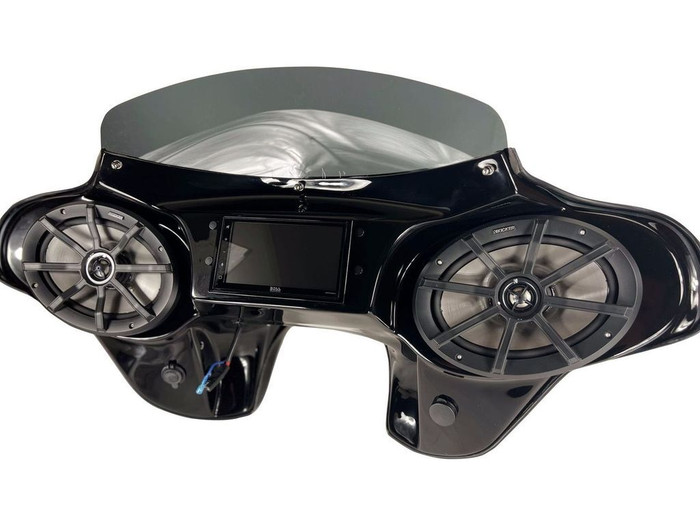

The Boss MRCP9685A stereo give you supreme control in 1 command center. With a 6.75" touchscreen display, the system delivers and looks good doing it. The USB ports let you connect a smartphone, with Apple CarPlay or Android Auto, and access your digital music library, music streaming app, and your smartphone's built in navigation. Bluetooth capability is built in, not accessible with Apple CarPlay or Android auto, as well as AM/FM radio, and digital access to your music library via flash drive.

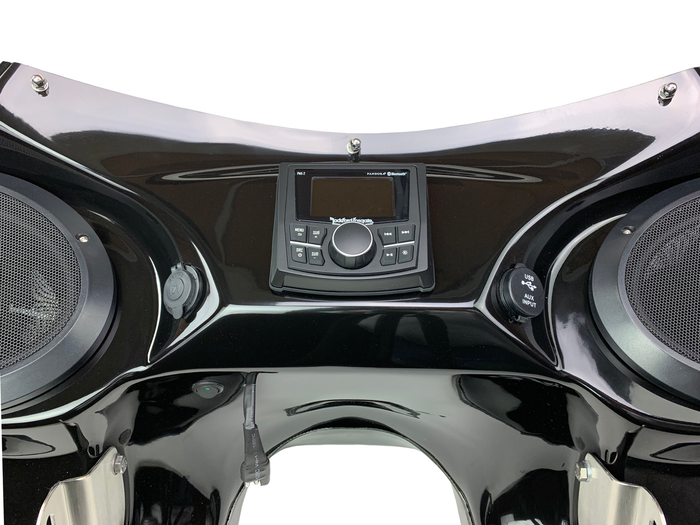

No matter how great these speakers are, they make no sound without something providing input. And that’s what the Rockford Fosgate PMX-1 does. Featuring built-in Bluetooth technology, a multi-use USB port, and AM/FM radio frequencies, this receiver with a water-resistant face plate packs a lot of features into a compact design.

A 2.7" thin-film transistor (TFT) display and full-color graphical user interface (GUI) make the sleek Rockford Fosgate PMX-2 visually impressive. But the marine-grade stereo is more than just a good-looking head unit. By putting elements such as Bluetooth, Pandora® Internet Radio, AM/FM/WB channels, and a graphic equalizer at the user’s fingertips, the PMX-2 is a music lover’s dream.

Each fairing comes with one clear and one tinted windshield at no additional cost.

*All options are not available with every fairing.

NOTE: The Vector Batwing Fairing Does Not have a functioning vent. The words “simulated vent” and “vented-look” refer to the cosmetic design of this fairing, which makes it appear to have a vent. We do not offer a truly vented fairing.



*Budget Option Contains*

Rockford speakers and mulitmedia head unit



Boss MRCP9685A :
Apple CarPlay / Android Auto (Wired), Bluetooth, AM/FM, USB Port (flash drives):
6.75" Capacitive Touchscreen: Multicolor Illumination:
Weatherproof Rating:
10-Band EQ with 5 Preset Curves:
Works with Apple® and Android®:
Rockford Fosgate PMX-2 :
Full-color 2.7” TFT display:
AM/FM, Pandora Radio, Bluetooth, USB port (flash drives, etc.), and 3.5mm audio adapter:
25 watts x 4 channels @ 4Ω peak, 50 watts x 4 channels @ 2Ω peak:
Android and iPod/iPhone compatible:
7-band graphic equalizer:
MB Quart GMR-LED:
3.5” Full-color LCD screen:
AM/FM, Bluetooth, USB port (flash drives), and 3.5mm audio adapter:
20 watts x 4 channels RMS, 40 watts x 4 channels peak:
8-band graphicequalizer:
Works with Apple® and Android®smartphones:
Rockford Fosgate PMX-1:
AM/FM, Bluetooth, USB port (flash drives), and 3.5mm audio adapter  :
25 watts x 4 channels @ 4Ω peak, 50 watts x 4 channels @ 2Ω peak  :
7-band parametric equalizer:
MP3 ID3 Tag Display: Title/Artist/Album
KICKER PS 6.5" 4Ω Coaxial :
Woofer  : 6 ½"
Tweeter  : .75”
Max rec amp power (watts PEAK/RMS): 120/60
Sensitivity (dB 1w/1m): 92.5
KICKER PS 6x9" 4Ω Coaxial :
Woofer  : 6"x9"
Tweeter  : 1"
Max rec amp power (watts PEAK/RMS)  : 180/90
Sensitivity (dB 1w/1m)  : 87.3dB
KICKER PS 5.25" 4Ω Coaxial :
Woofer  : 5.25"
Tweeter  : .75”
Max rec amp power (watts PEAK/RMS): 100/50
Sensitivity (dB 1w/1m): 88.3
Rockford Fosgate®P1524 4Ω Coaxial (4) :
Subwoofer    : 5.25"
Tweeter    : .75"
Max rec amp power (watts PEAK/RMS)  : 80/40
Sensitivity (dB 1w/1m)  : 87dB
Rockford Fosgate®P1692 4Ω Coaxial :
Subwoofer      : 6”x9"
Tweeter      : .75"
Max rec amp power (watts PEAK/RMS)    : 150/78
Sensitivity (dB 1w/1m)   : 91dB

Customer reviews

7 Reviews Write a Reviews
  • Good quality and options
    4

    Posted by Jeff on Aug 16th 2024

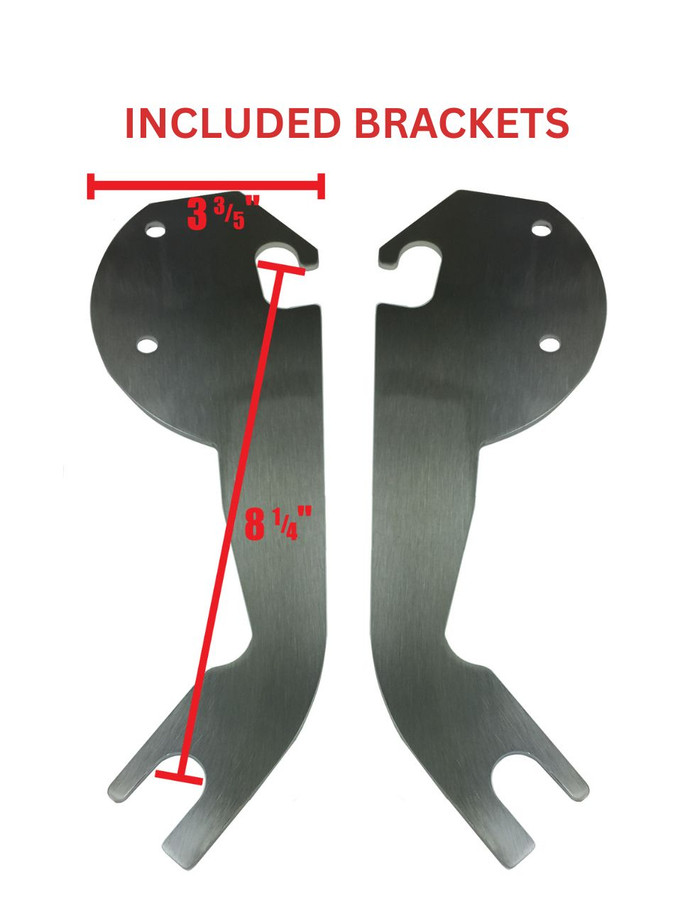

    Ordered with the boss audio head unit and 4 speakers. As another reviewer stated, you will need spacers for the top bolt in order to attach. One issue I have is that I had to rotate the stock bars back about 45 degrees to mount. The mounting hardware has a pivot point but can only go about 1/2” until they make contact with the lower edge of fairing. If I count get the fairing about 2” forward more it would be perfect.

  • Great product
    3

    Posted by Brent kay on Jul 4th 2024

    Received my fairing, came in withing 2 weeks. Realized there was no power cable. Contacted customer service who responded extremely fast (everytime) was told it was in the box and if I wanted another I had to buy it. Ok what ever, got the new cable and it had only a blue wire and red. Not 3 wires like instructions said. Contacted customer support again and they said they sent the wrong install instructions, immediately sent correct ones. Hooked it up and works awesome. Would have gave it 5 stars if I didn't have to buy a cable that was suppose to come with it, but definitely a great fairing and sou d system.

  • 18 to present Harley Softtail Heritage Batwing Faring.
    5

    Posted by William Shubert on Jun 24th 2024

    This Faring arrived 2 weeks sooner than promised. It was very easy to install looks great and the audio system is very powerful. I strongly recommend buying this product. Corresponding with Danny by text message was quick and very helpful. Great customer service.

  • Looks great!
    5

    Posted by Martin Gruelle on Oct 19th 2023

    a couple challenges on 22 heritage, the fairing hit the riser bolts but was easy fix as the brackets provided had slots which moved the fairing enough for a good fit. disassembly and reassembly was pretty easy, recommend not installing the windshield until after you pre fit the fairing. Wish they would have included the half inch spacer for top mount but cheap easy fix. The pmx2 and 6x9 kickers are impressive to say the least. Very happy with purchase.

  • love it
    5

    Posted by Unknown on Jun 23rd 2023

    I bought this for my husband and he loves it

  • love it
    5

    Posted by Unknown on May 16th 2022

    This fairing is amazing the fit was well on my 18 heritage. It looked amazing and sounded greatwith Rockford fosgate pmx-2 and 4 Rockford Fosgate 5 1/4

  • Nice fairing, not so good craftsmanship
    4

    Posted by Jim of Colorado on Aug 18th 2020

    I have no complaints about the fairing or anything about it. I had a set of attaching hardware installed on it before being shipped but when I went to put it on, the mounts were not installed right. One mount was over an inch offset. I had to redrill the fairing to get the mounts to line up correctly. Just poor workmanship.
